4 Colors Automatic Silk Screen Printing Equipment Rotating Screen Printing Machine For T Shirt

FOB Reference Price:Get Latest Price
$26,000.00 - $28,000.00 / Set | 1.0 Set/Sets (Min. Order)
Model Number:
HJD-A1004
Gross Power:
2.6Kw
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 10 Negotiable
Report Suspicious Activity
Overview
Quick Details
Plate Type:
Screen Printer
Applicable Industries:
Printing Shops, t shirt screen printing machine
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
Viet Nam, Indonesia, Bangladesh
Showroom Location:
Viet Nam
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
HJD
Usage:
Paper Printer, Label Printer, Cloths Printer
Automatic Grade:
Automatic
Color & Page:
Multicolor
Voltage:
380V
Dimensions(L*W*H):
10738x3190
Weight:
3500KG
Certification:
CE Certification
Warranty:
1 YEAR
After-sales Service Provided:
Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
Key Selling Points:
Automatic
Marketing Type:
Hot Product 2019
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Warranty of core components:
1 YEAR
Core Components:
Bearing, Motor
Type:
Silk Screen Printing Machine
Application:
T-shirt Printing
Color/station:
4colors/16 station
Plate size:
580*850mm
Printing speed:
700pcs/h
printing head driving power:
Servo motor 400W
printing area:
55*70cm
air supplies:
user preparation
air consumption (m3/min):
0.1
Air compressor:
0.6Mpa/0.8Mpa (After drying and filter)
Supply Ability
Supply Ability:
500 Set/Sets per Year
Packaging & Delivery
Packaging Details
Wooden Box
Port
Qingdao Port
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 10 To be negotiated



Product Description

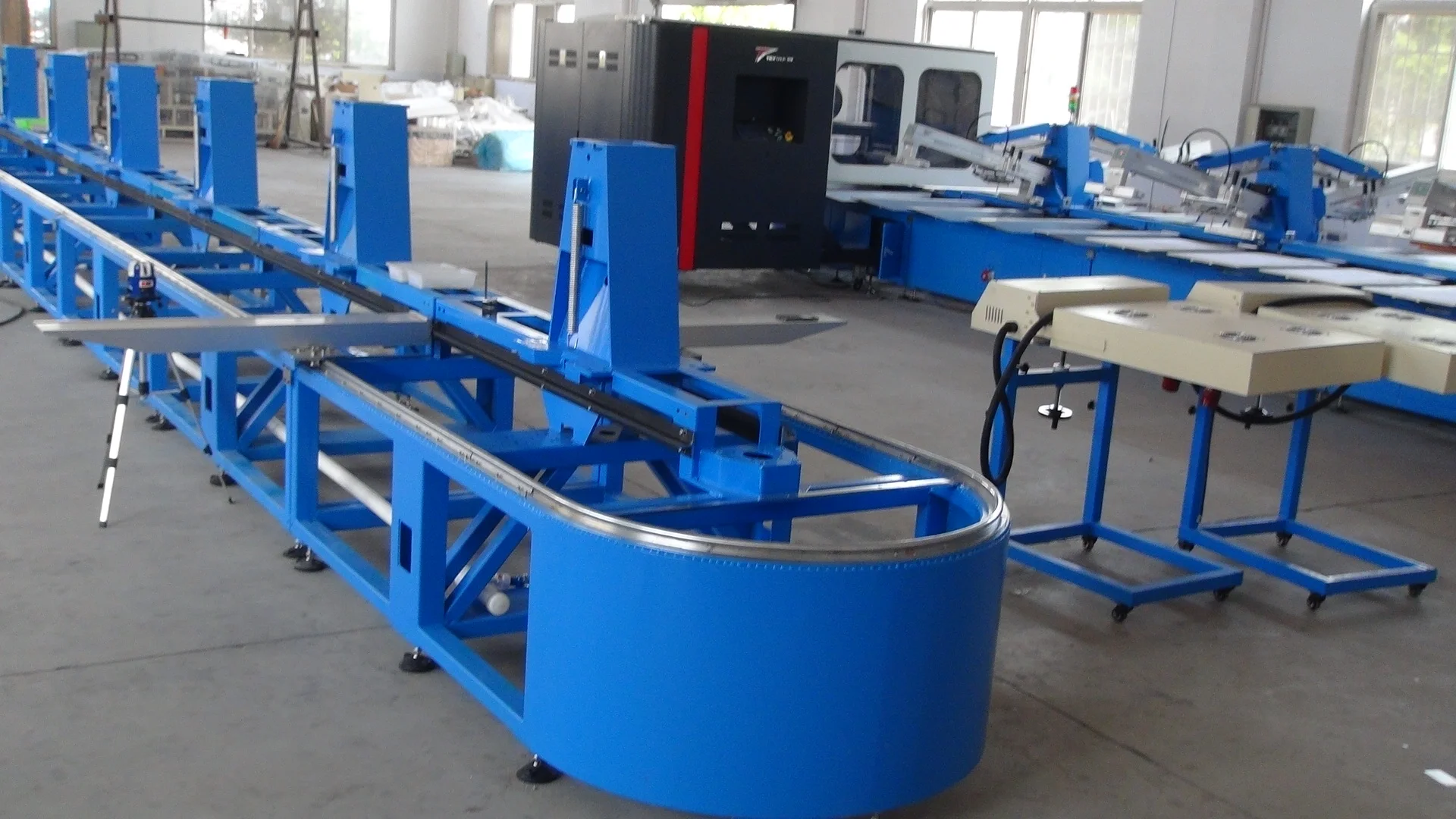

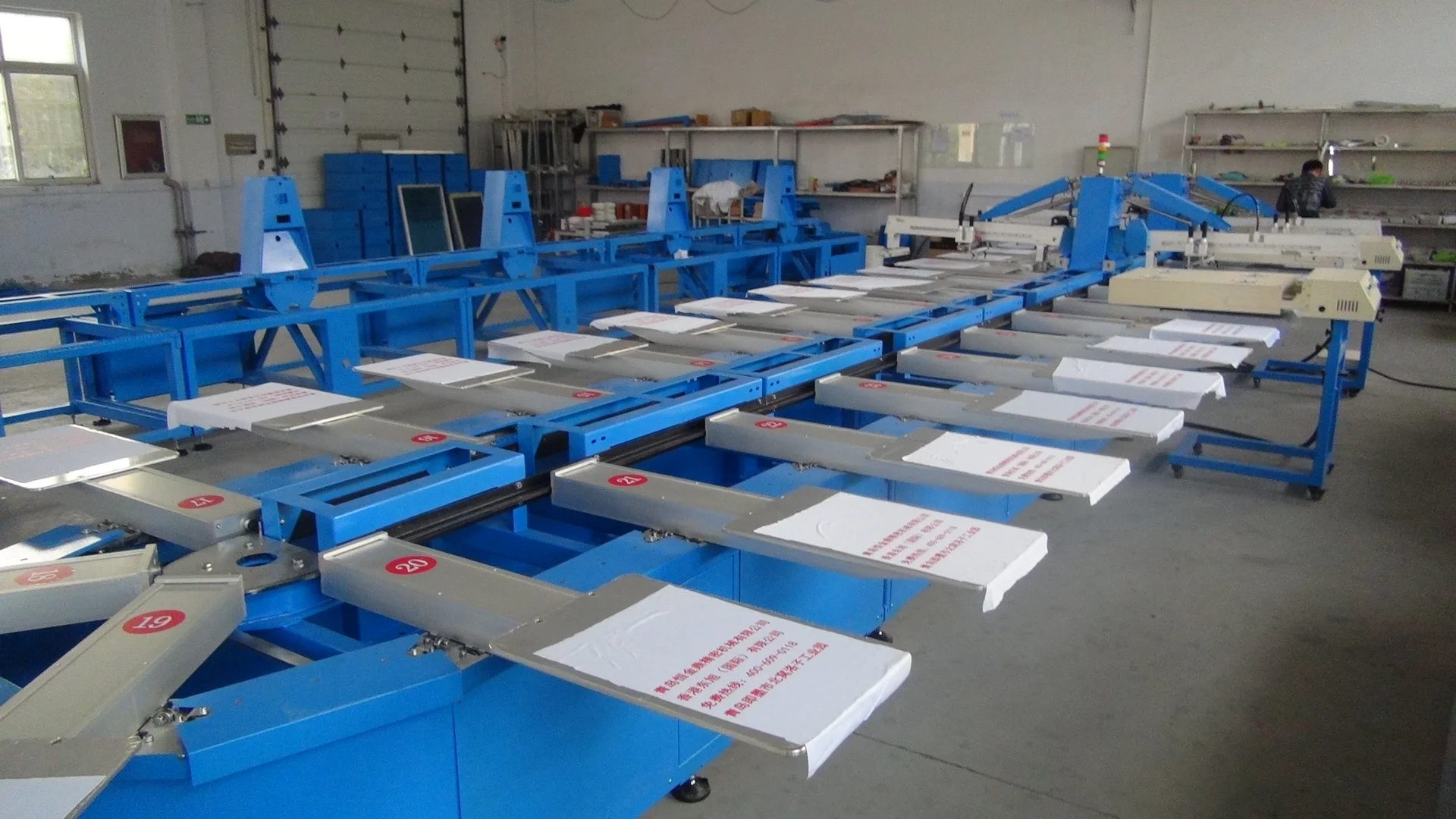

 4 Colors Automatic Silk Screen Printing Equipment Rotating Screen Printing Machine For T Shirt





Model

2S

4S

6S

8S

10S

12S

14S

16S

18S

20S

Plate Quantities (pieces)

10

16

22

28

34

40

46

52

58

64

Printing Number (color)

2

4

6

8

10

12

14

16

18

20

Printing Size (cm)

55*70(platen size 58*85)

Max Frame (cm)

66*99

Machine length (cm)

450

682

888

1094

1300

1506

1712

1918

2124

2330

Machine width (cm)

316

Machine Height (cm)

162

Machine weight (kg)

1600

2200

2700

3200

3700

4200

4700

5200

5700

6200

Air consumption(m3/m)

0.05

0.1

0.15

0.2

0.25

0.3

0.35

0.4

0.45

0.5

Air pressure Specification

0.6Mpa/0.8Mpa

Print Head Driver

Single printing head servo motor 400W

Total power Consumption (kw)

1.8

2.6

3.4

4.2

5

5.8

6.6

7.4

8.2

9

Power supply parameters

380V,50HZ,three phase four wires

 Capacity

700 pcs/h

Product Details



  Frame fixation method is special , adopt four point positioning device , clean the frame net and exchange the new mesh quickly . It make sure that the printing precision stable . Cooling station can decrease the condition occurred which blocking the mesh when water slurry printing.

  The frame is general application , the previous application to machine or manual screen frame both can be no limited and it can be used to oval automatic screen printing machine. There is no limit for large cutting piece printing and printing the t shirt finished .
